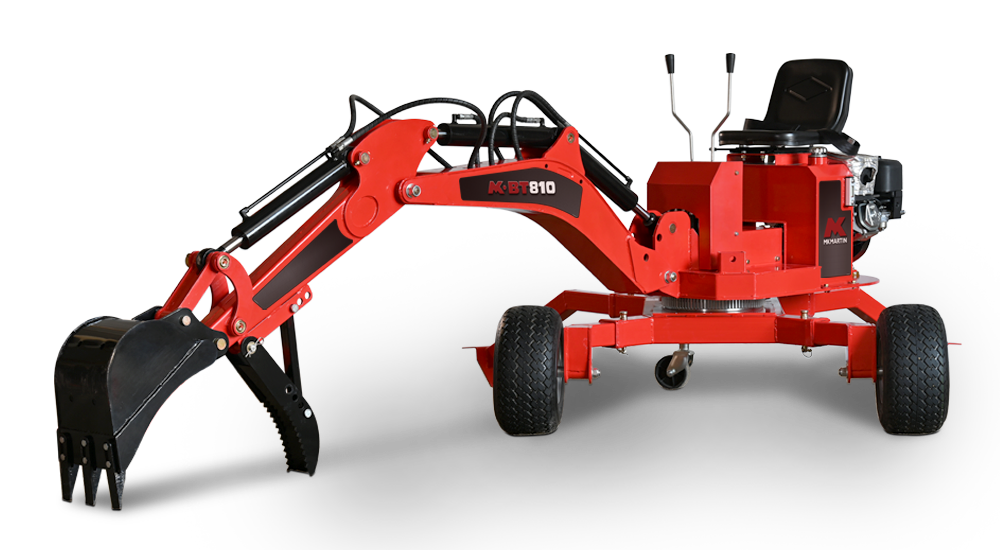

Trailer Backhoe Main Image
Trailer Backhoe

MK Martin’s BT810 Trailer Backhoe is powered by an electric start Briggs & Stratton engine. This backhoe has a working depth of 4 feet 11 inches and a digging force of 1,764 lbs., making it the right machine for property maintenance or landscaping projects.

Easily towed from one job to the next, the BT810 offers a full 360 degree rotation, allowing you better range and maneuverability.

One year consumer warranty.

BT810 Standard Setup
Engine HP 14 HP Gasoline
Capactiy (HP) 14 hp
Start Up Electric
Digging Force 800 kg/1,764 lbs.
Bucket Reach 204cm / 6'8"
Working Depth 160cm / 5 ft 3 inches
Tongue Weight 113 kg / 250 lbs
Lifting Capacity 200 kg / 440 lbs
Total Weight 600 kg / 1323 lbs.
Total Reach of Boom 270cm / 8'10"
Hydraulic Pressure 16 MPA / 2,320 psi
GPM 7.5 GPM at 1800 RPM

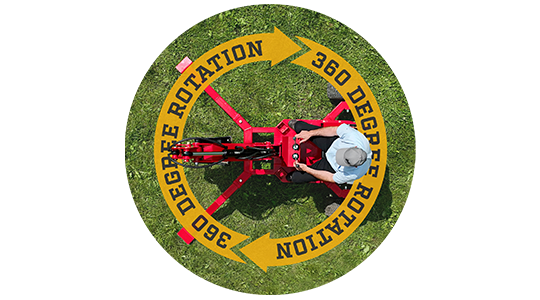

360 degree rotation Feature Image

360 Degree Rotation

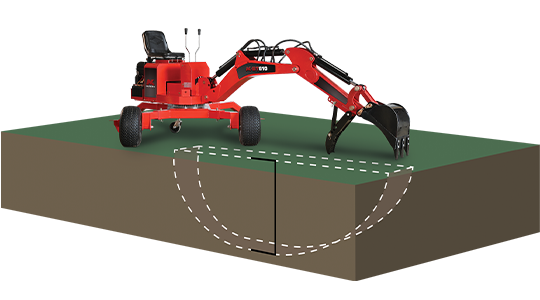

5 Foot Working Depth Feature Image

5 Foot Working Depth

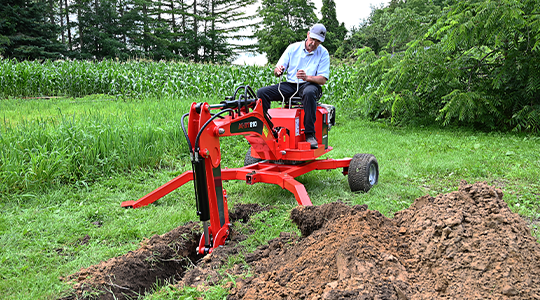

1764lbs (800kg) digging force Feature Image

1764lbs (800kg) Digging Force

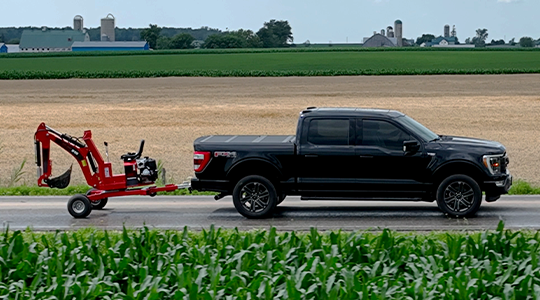

Towable design Feature Image

Towable Design

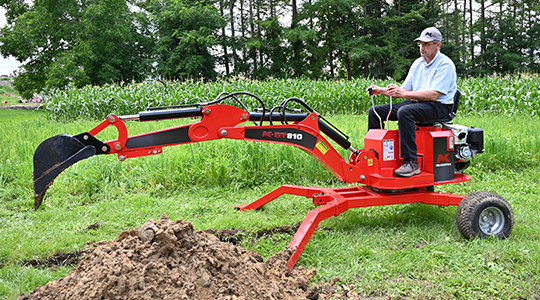

Curved Boom Design Feature Image

Curved Boom Design

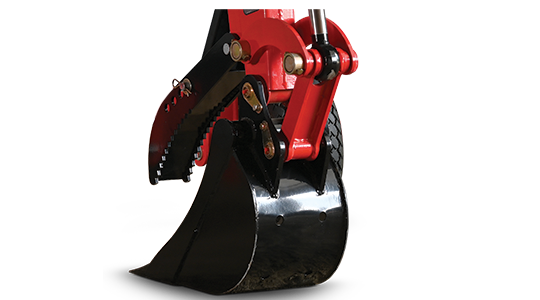

12 & 18 Bucket with Mechanical Thumb Feature Image

12” & 18” Bucket with Mechanical Thumb

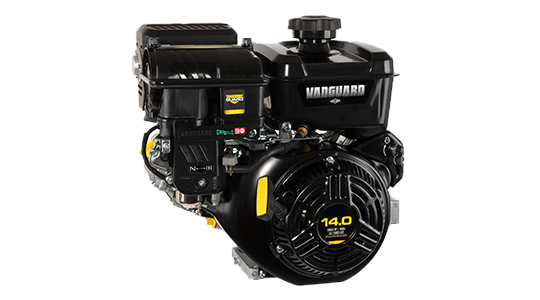

14HP Gasoline Engine

14HP Gasoline Engine

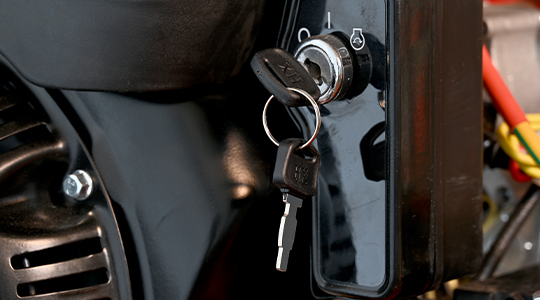

Electric Start

Electric Start
