Strip Cat

Specifications
Parts

The Strip Cat is fully adjustable to your field conditions. Available in a 3PH or Trailed version the Strip Cat can be set up for either liquid or dry fertilizer application allowing an all in one tilling and fertilizing solution.

Benefits

Reduces field travel and compaction
Improves fertilizer management
Reduces soil erosion
Increases germination

Features

Choose from 4-6-8-12-16 Row Units
Standard 30" Spacing (Optional 22" Spacing)
Independent row units with adjustable down pressure
Dry lube bushings in joints

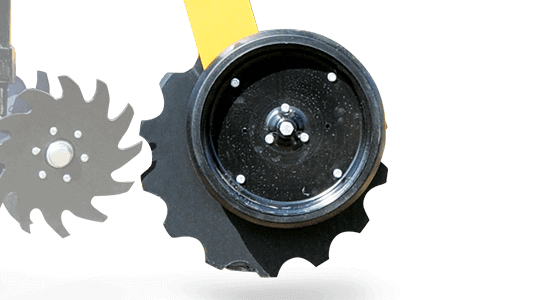

Adjustable IRD Depth wheels
20" notched coulters (30% more cutting)

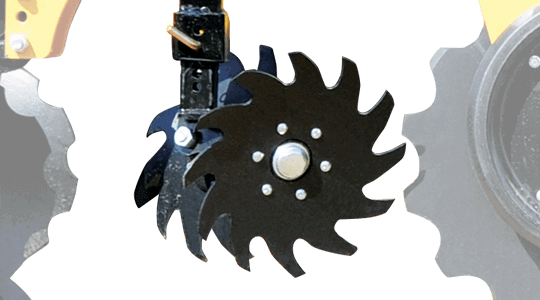

Sunco Trash Managers to clean the tilled strip

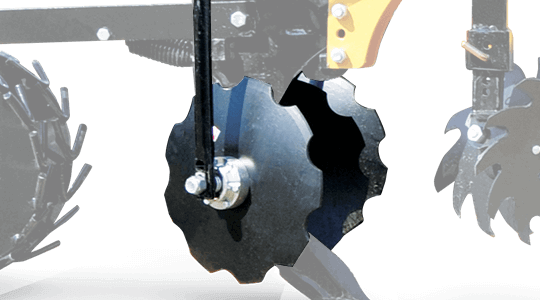

Independent spring loaded berm builders
(height and angle adjustment)

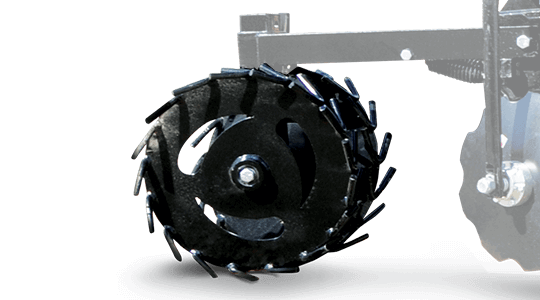

Dual wheel packers with adjustable down pressure
All pull pin adjustments

Part	Description	6 Row (30" Rigid)	8 Row (30" Rigid)	12 Row (30" Folding)	16 Row (30" Folding)	18 Row (22" Folding)
SCTB6R30	6 row 30” tool bar	1	-	-	-	-
SCTB8R30	8 row 30” tool bar	-	1	-	-	-
SCTBSF12R30	12 row 30” Stack N Fold	-	-	1	-	-
SCTB12R30	12 row 30” tool bar	-	-	1	-	-
SCTBSF16R30	16 row 30” Stack N Fold	-	-	-	1	-
SCTB16R30	16 row 30” tool bar	-	-	-	1	-
SCTB28R22	18 row 22” tool bar	-	-	-	-	1
SCBRU	Generation II row unit	6	8	12	16	18
SCSNC	Notched Coulter	6	8	12	16	18
SCSWC	Wavy Coulter	6	8	12	16	18
SCSTM	Sunco Trash Manager	6	8	12	16	18
ST5011196	Floating Trash Manager mnt	3	4	6	8	9
SCIRDT	Depth Gauge Wheel (set)	6	8	12	16	18
SCIRDC	Coulter Depth Gauge Wheel	6	8	12	16	18
22,855	Fixed Knife Adaptor	6	8	12	16	18
SCNIBBD	Independent Berm Builder (cupped)	6	8	12	16	18
SCNIBBC	Independent Berm Builder (wavy)	6	8	12	16	18
SCBPT	Berm Packer (urethane)	6	8	12	16	18
SCBPW	Berm Packer (wire)	6	8	12	16	18
SCBE	Berm Enhancer	6	8	12	16	18
SCKLSTS	Knife Shank w/repl. Standard Point (liquid)	6	8	12	16	18
SCKDDTL	Knife Shank w/repl. Low Draft Point (liquid/dry)	6	8	12	16	18
SCCK10	10 degree knife coulter	6	8	12	16	18
SCCK15	15 degree knife coulter	6	8	12	16	18
SCHTA6R30	6 row 30” hydraulic tripper	1	-	-	-	-
SCHTA8R30	8 row 30” hydraulic tripper	-	1	-	-	-
SCHTASF12R30	12 row 30” hydraulic tripper (For Stack N Fold)	-	-	1	-	-
SCHTA12R30	12 row 30” hydraulic tripper	-	-	1	-	-
SCHTASF16R30	16 row 30” hydraulic tripper (For Stack N Fold)	-	-	-	1	-
SCHTA16R30	16 row 30” hydraulic tripper	-	-	-	1	-
SCHTA18R22	18 row 22” hydraulic tripper	-	-	-	-	1
SCSGW	Standard Gauge Wheel (set)	1	1	1	1	1
SCPDGW	Pump Drive Gauge Wheel (set)	1	1	1	1	1
SCTDF	Trailer Hitch	1	1	1	1	1
SCSTPO	Replacement knife point (mini Mole)(Parts)	6	8	12	16	18
SCLDPO	Replacement knife point (low draft)(Parts)	6	8	12	16	18
