Honda Engine
The snow thrower unit is powered with a reliable GX 390 Honda engine.
1.855.664.2752

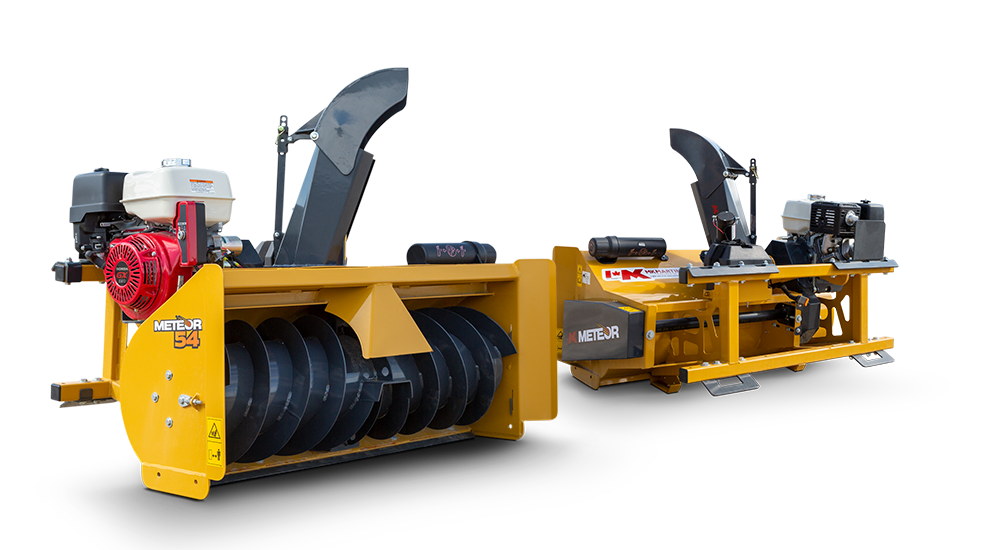

Self Powered Snow Thrower
- Specifications
- Features
MK Martin is happy to introduce a new self powered snow thrower for compact skid loaders and tractors without hydraulic remotes.
While being easy to attach with no drive lines or hoses to worry about, the engine belt drives the shaft which transfers power to the rotor by a roller chain.
These self powered snow throwers are ideal for moving snow quickly with precision in mind. The flared body opening helps to cut snow and direct to the efficient rotor assembly.
Specifications
| Model | S1054E | S1060E |
| Cutting Width | 47" | 53" |
| Motor Type | Honda 13HP | Honda 13HP |
| Electric Start | 12 Volt | 12 Volt |
| Clutch | Electric (start/stop blower) | |
| Rotor | 16" @ 750 RPM | |
| Hood Rotator | Electric | Electric |
| Hood Deflector | Manual | Manual |
| Cutting Edge | Bolt on 1/4" x 3-1/2" | |
| Overall Width | 54" | 60" |
| Overall Depth | 36" | 36" |
| Main Body Height | 22.75" | 22.75" |
| Weight | 470 lbs. | 545 lb. |
Drive Belts
Dual V-Belts connect the Honda engine to the intermediate shaft.
Chain Drive
Roller chain connects the final drive between the intermediate shaft and the rotor.
Cutting Edge
These snow throwers come standard with a 1/4" x 3-1/2" bolt on cutting edge.
Chute Rotator
An electric chute rotator comes standard and uses a wired remote to activate and rotate the chute for optimal snow placement.
Wired Remote
The wired controller allows for remote engine start and shutdown.
Oversized buttons allows operators to make quick and accurate adjustment of the chute rotation.
Chute Deflector
The chute deflector has an easy to use pin adjustment for quick manual changes to better direct the snow.
Skid Bars
Welded skid bars come standard and are available with optional bolt-on skid shoes.
