Grader Leveler Main Image
Grader Leveler

This two in one combination of leveling and scraping makes short work of your grading jobs. The first blade attacks the high spots cutting them down to size, the second blade further scrapes anything the first missed and fills in the hollows. With two blades cutting and filling it takes much less time and fewer passes to achieve the even distribution of material you are looking for.

The scraper can be 3PH mounted, or equipped with a skidsteer adapter plate puts the work in front of you.

Model Working Width Overall Width Skid Shoes Mouldboard Thickness Cutting Edge Weight (LBS.)
578 60" 65" 3/8" x 2 Reversible 1/4" 1" Adjustment 566
678 72" 77" 3/8" x 2 Reversible 1/4" 1" Adjustment 630
778 84" 89" 3/8" x 2 Reversible 1/4" 1" Adjustment 696
878 96" 101" 3/8" x 2 Reversible 1/4" 1" Adjustment 760
Reversible Hardened Cutting Edges Feature Image

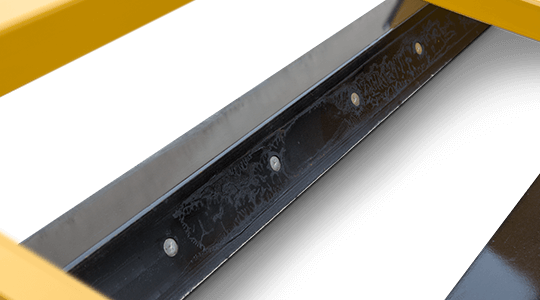

1/2" Reversible Hardened Cutting Edges

With two half inch reversible hardened cutting edges material is quickly leveled or redistributed to fill low points as the unit passes.

Bolt-On Skid Shoes Feature Image

Bolt-On Skid Shoes

The bolt-on skid shoes allows the Grader Leveler to effortlessly run over your path without damaging the product, or damaging the area you’re leveling.

Skidsteer Adaptor Feature Image

Optional Skidsteer Adaptor

The Grader Leveler can be mounted either with a skidsteer mount. Additionally, each Grader Leveler can be equipped with both a skidsteer and 3PH mount allowing for more versatility when leveling your property.

3PH Adaptor Feature Image

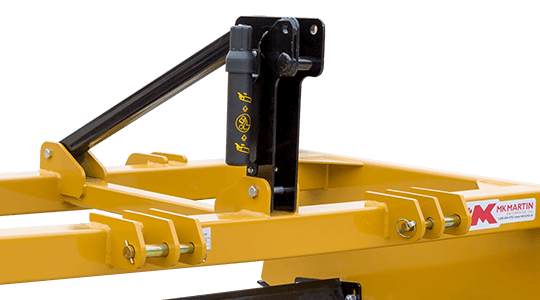

Optional 3PH Adaptor

The Grader Leveler can be mounted either with a 3PH mount. Additionally, each Grader Leveler can be equipped with both a skidsteer and 3PH mount allowing for more versatility when leveling your property.

Flow Over Design

Flow over design means operators don’t need to raise the Grader Leveler to release the material.
