Skidsteer Rotary Cutter
- Specifications
- Features
Designed for mowing fields and light brush up to 2" in diameter, hydraulic models are the ideal cutting attachments for skid loaders. The hydraulic motor is matched to the flow of the skid loader to provide optimal performance. Coupled directly to the hydraulic motor, the drive spindle is supported by two bearings allowing the power to be transferred directly to the blade assembly without the need for a gear box. Hydraulic models come standard with a front push bar for bending over light brush, a chain curtain to prevent materials from be ejected from under the deck, and a floating pivot mount which allows the mower to follow the contours of the ground.
Specifications
Model (Hydraulic) | PRCH60 | PRCH72 |
Shipping Weight (LBS.) | 760 | 860 |
3PH Mount | NA | NA |
Cutting Height | min 2" | min 2" |
Cutting Path | 60" | 72" |
Max Brush Diameter | 2" | 2" |
Overall Width | 66" | 78" |
Tip Speed (Ft/Min) | See Flow Chart | See Flow Chart |
Acres/Hr (5 MPH) | 2.73 | 3.27 |
Wheels (Segmented) | NA | NA |
Blades (Qty.) | 1/2" x 3" (3) | 1/2" x 3" (3) |
Hydraulic Requirement * | See Flow Chart | See Flow Chart |
Deck | 3/16 | 3/16 |
Stump Jumper | Yes | Yes |
Protection | Relief Valve | Relief Valve |
* To ensure optimum performance, hydraulic output must match motor package.
GPM Flow Chart
GPM | PRCH60 (FT/Min) | PRCH72 (FT/Min) |
14-16 | 10,400-11,880 | 12,480-14,260 |
17-20 | 10,100-11,880 | 12,120-14,260 |
20-22 | 9,510-10,460 | 11,410-12,550 |
23-26 | 8,545-9,660 | 10,250-11,570 |
27-33 | 8,020-9,810 | 9,630-11,770 |
33-40 | 7,840-9,510 | 9,410-11,410 |
Mount
Chain Curtain Option

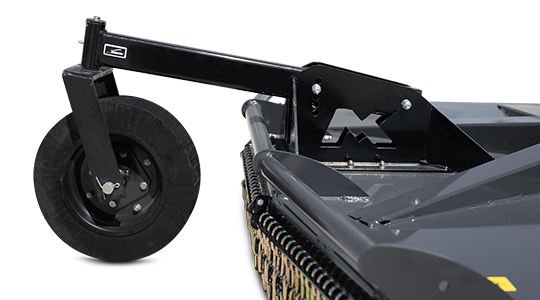

Optional Bolt-On Gauge Wheel
Deck Protection Ring
