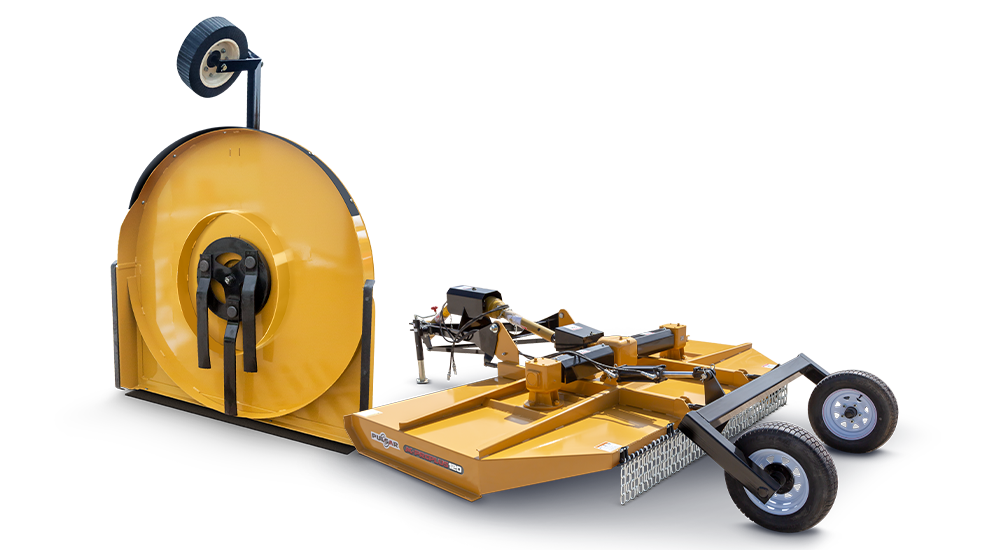

3PH Rotary Cutter - Plus
- Specifications
- Features
Now available, the Plus series of PTO powered rotary cutters provides increased cutting and shredding performance. Available in 60"-120" sizes the redesigned stump jumper on the Plus is equipped with 3 blades increasing cutter efficiency and productivity. When equipped the optional slip clutch keeps this cutter moving throughout the work day.
Model | PRCPLUS60 | PRCPLUS72 | PRCPLUS84 | PRCPLUS96 | PRCPLUS120 |
Shipping Weight (LBS.) | 595 | 775 | 1,045 | 1,530 | 1,610 |
Hitch Type | Cat 1 & 2 Quick Tach compatible | Draw Bar Hitch | |||
Cutting Height | 2" - 10" | 2" - 10" | 2" - 10" | 2" - 10" | 2" - 10" |
Cutting Path | 60" | 72" | 84" | 96" | 120" |
Max Brush Diameter | 2" | 2" | 2" | 2" | 2" |
Tip Speed (Ft/Min) | 12,462 | 15,260 | 17,803 | 16,500 | 14,500 |
Wheel Type (Qty.) | 16" Segmented (1) | 16" Segmented (1) | 16" Segmented (2) | 16" Segmented (2) | 16" Pneumatic (2) |
Blades | 3 - 1/2" x 3" | 3 - 1/2" x 3" | 3 - 1/2" x 3" | 3 - 1/2" x 3" | 6 - 1/2" x 4" |
Tractor HP (min) | 30-40 | 60 | 60 | 80 | 80 |
PTO RPM | 540 | 540 | 540 | 540 | 540 |
Gearbox Rating * | 75 HP | 75 HP | 90 HP | 100 HP | 120 HP |
Deck | 3/16" | 3/16" | 3/16" | 3/16" | 9GA |
Stump Jumper | Yes | Yes | Yes | Yes | Yes |
Protection | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch | Slip Clutch |
* Based on field performance

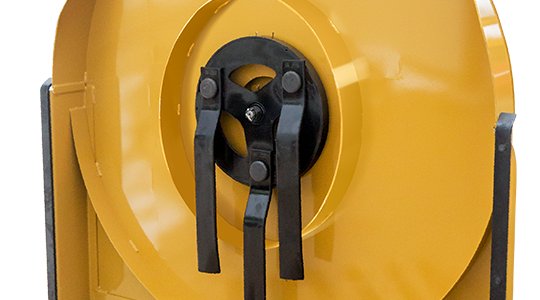

Blade Assembly

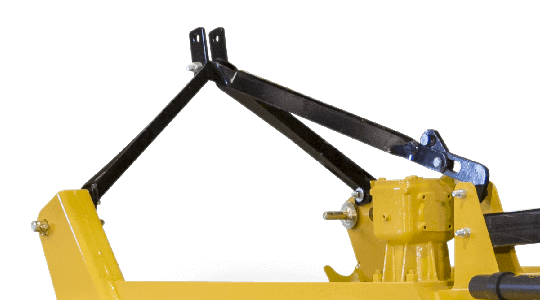

Floating Top Link

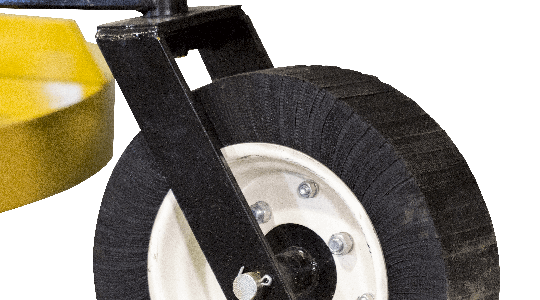

Segmented Wheel

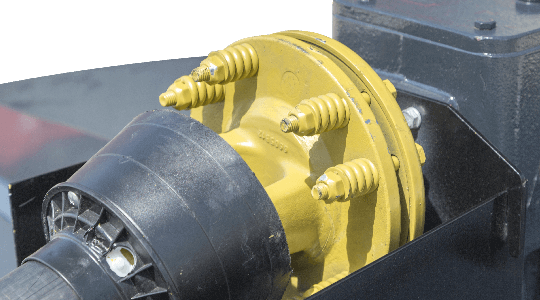

Slip Clutch

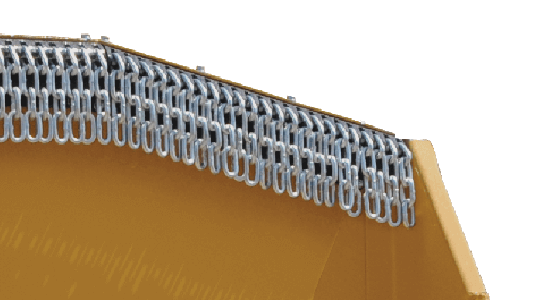

Chain Curtain Option

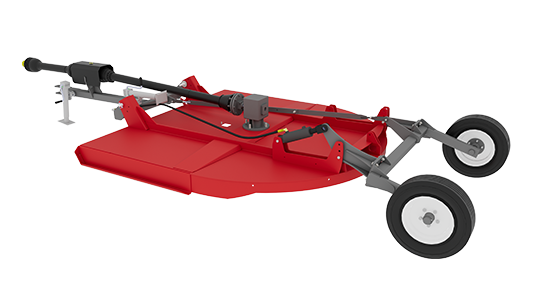

Optional Draw Bar Kit
The Draw Bar Kit is designed for 84" & 96" models. The kit consists of components shown in black in this image (red components for illustration only).
