Rotary Sweepers
- Specifications
- Features
When it’s time for spring cleaning or job site cleanup, get the work done quickly with MK Martin’s rotary sweepers. Ideal for cleaning farm yards, job sites, parking lots or residential streets, MK Martin’s rotary sweepers give you heavy duty cleanup power in a compact design. Offering a sweeping path of 60 inches and a 19-inch brush diameter, these sweepers are designed to tackle the toughest jobs - efficiently. This sweeper is designed with a floating linkage to ensure the 29 heavy duty sweeping wafers maintain an even, level pressure on uneven surfaces.

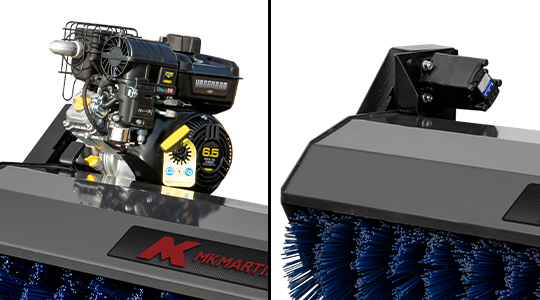

| Motor | MKCS1960H - Hydraulic Drive | MKCS1960 - Gas Engine |
| Motor | 8-12 GPM | 6.5 HP Vanguard Engine |
| Sweeping Width | 60" | 60" |
| Overall Width | 64 ½" | 64 ½" |
| Brush Diameter | 19" | 19" |
| Drive System | Chain - Fully engaged so the brush turns all the time | Chain - Fully engaged so the brush turns all the time |
| Lateral Swivel | 3° | 3° |
| Sweeping Angle | 30° on each side | 30° on each side |
| Angling Options | 1/2" | 1/2" |
| Center Frame Transport Cylinder | Manual (std), Hydraulic (optional), Electrical Actuator(optional) | Manual (std), Hydraulic (optional), Electrical Actuator(optional) |
| Sweep Length @ 30° | 54 ¼" | 54 ¼" |
| Wheels | 6" x 2" Caster Wheels | 6" x 2" Caster Wheels |
| Weight | 455 lbs. approx. | 455 lbs. approx. |
| Mounting Options | SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach, TORO-DINGO Plate (Available) | SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach, TORO-DINGO Plate (Available) |

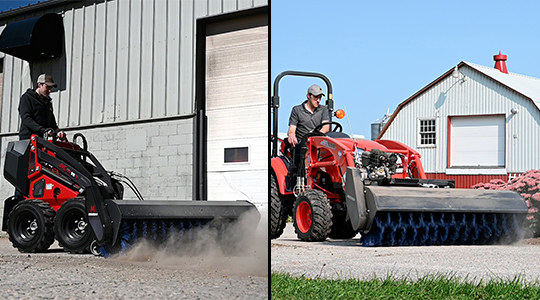

Skidsteer and Loader Mounting Options

19 inch Brush Diameter

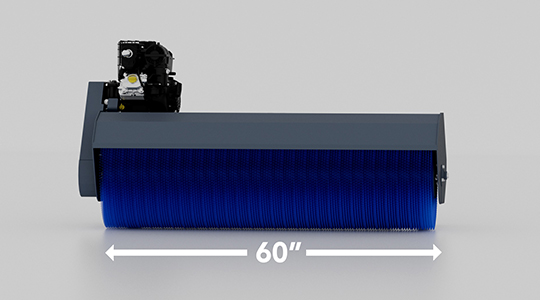

60 inch Sweeping Width

30 Degree Sweeping Angle
