Land Plane Main Image

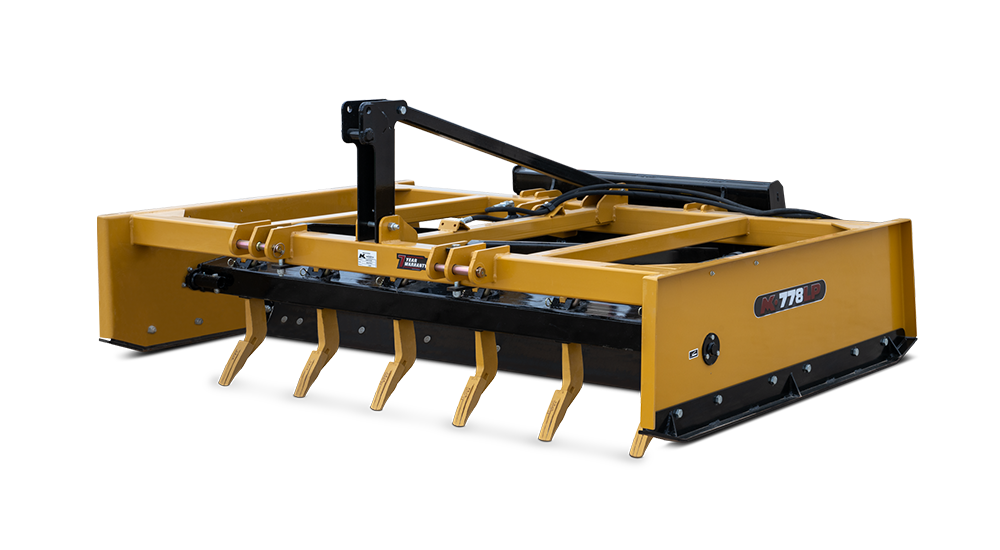

Land Plane

Designed to revive your laneway or gravel lots, the Land Plane provides acreage owners with a single tool to tear up hardpack, fill potholes, and grade for a smooth desirable finish.

The Land Plane is available in 72", 84", and 96" widths giving operators the ideal working widths for their compact and utility tractors.

Two hydraulic cylinders power the scarifier bar deep below the surface loosening the hard pan and pulling the material to the surface where it can be redistributed. The hydraulic control allows the operator to adjust pressure on the fly to compensate for the changing ground conditions without having to leave the operators seat.

The Land Plane is available in either skid loader or 3PH mounts.

Model LP678 LP778 LP878
Working Width 72" 84" 96"
Overall Width 77" 89" 101"
Length 69.5" 69.5" 69.5"
Shank (Qty.) 6 7 8
Shank Tube 4" x 6" x 1/4" 4" x 6" x 1/4" 4" x 6" x 1/4"
Cutting Edge (x2) Hardened 1/2" - Reversible 1" Adjustments
Skid Shoes 3/8" x 2 Reversible 3/8" x 2 Reversible 3/8" x 2 Reversible
Cylinder Dual Hydraulic Cylinders for shank rotation
Weight (LBS.) 1,140 1,240 1,350
Long Wearing Shanks Feature Image

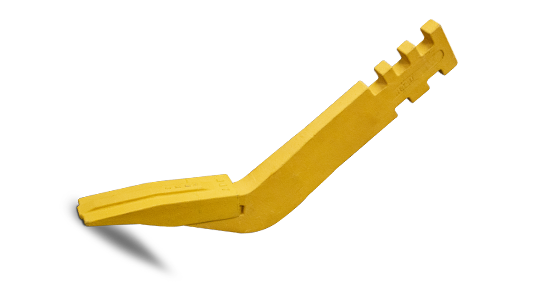

Long Wearing Shanks

Long wearing grader quality shanks feature height adjustment and replaceable chisel tips.

Hydraulic Cylinders Feature Image

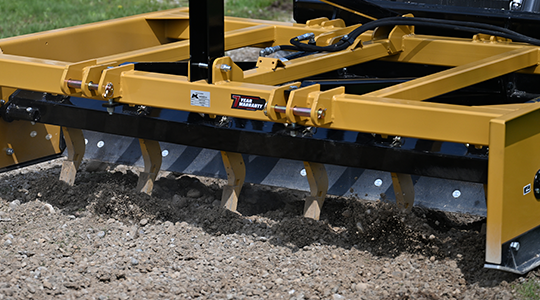

Hydraulic Cylinders

Two hydraulic cylinders power the scarifier bar deep below the surface loosening the hard pan and pulling the material to the surface where it can be redistributed.

Reversible Hardened Cutting Edges Feature Image

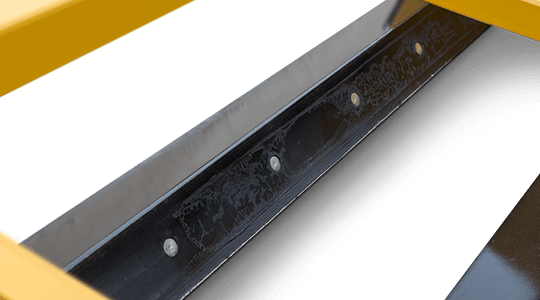

1/2" Reversible Hardened Cutting Edges

With two half inch reversible hardened cutting edges material is quickly leveled or redistributed to fill low points as the unit passes.

Bolt-On Skid Shoes Feature Image

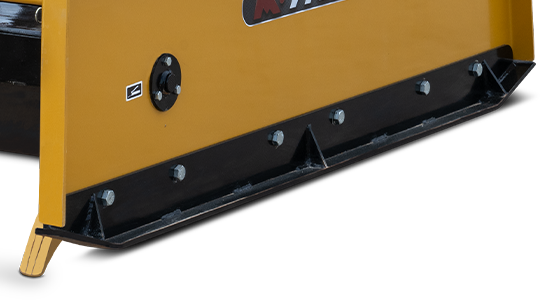

Bolt-On Skid Shoes

The bolt-on skid shoes allows the Grader Leveler to effortlessly run over your path without damaging the product, or damaging the area you’re leveling.

Skidsteer Adaptor Feature Image

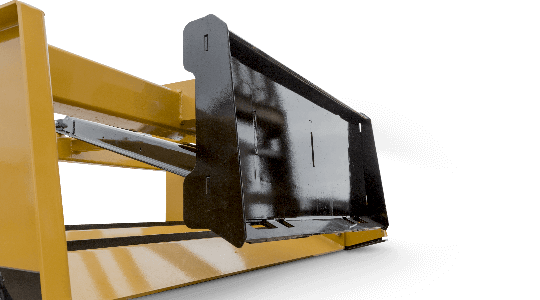

Optional Skidsteer Adaptor

The Grader Leveler can be mounted either with a skidsteer mount. Additionally, each Grader Leveler can be equipped with both a skidsteer and 3PH mount allowing for more versatility when leveling your property.

3PH Adaptor Feature Image

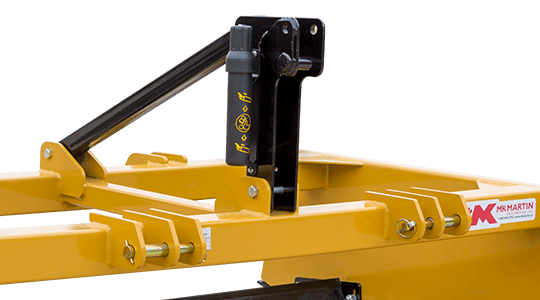

Optional 3PH Adaptor

The Grader Leveler can be mounted either with a 3PH mount. Additionally, each Grader Leveler can be equipped with both a skidsteer and 3PH mount allowing for more versatility when leveling your property.

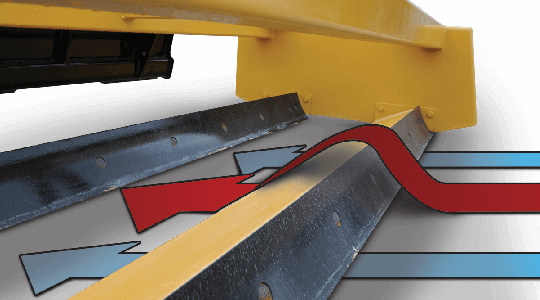

Flow Over Design

Flow over design means operators don’t need to raise the Grader Leveler to release the material.
