Field Roller Main Image
Field Roller

The MK Martin Field Roller, engineered to effectively pack and level your field surface, protecting your equipment from large rocks, and achieving optimal seed-to-soil contact. MK martin builds for strength and performance. Unlike many field rollers, the MK Field roller is built with an impressive half-inch thick rolled steel to form the drum. This additional thickness protects the drum from damage while rolling over larger rocks as well and ensuring superior weight per square foot for effective field preparation. Additionally, the MK field roller is built with a 3” diameter drum roller shaft. The 2 inch diameter u-joint and pivot pins come with composite bushing to ensure a low maintenance operation.

Models R3436 R3636 R4136 R4636
Field Working Width 34' 36' 41' 46'
Frame Sections 11.5' -12' - 11.5' 12.5' -12' - 12.5' 15' -12' - 15' 17.5' -12' - 17.5'
Section Overlap 5" 5" 5" 5"
Machine Weight 16,190 lbs 17,275 lbs 19,055 lbs 20,855 lbs
Weight Per Foot 475 lbs 479 lbs 464 lbs 453 lbs
Drum Dia. 36" 36" 36" 36"
Drum Wall Thickness 1/2" 1/2" 1/2" 1/2"
Center Frame Transport Cylinder 4" x 48" 4" x 48" 4" x 48" 4" x 48"
Wing Boom Cylinder 4" x 48" 4" x 48" 4" x 48" 4" x 48"
U-Joint & Pivot Pin Diameter 2" w/ Maintenance Free Composite Bushings
Drum Roller Shaft Diameter 3" 3" 3" 3"
Dimensions 164"W x 270"L x 150"H 164"W x 270"L x 150"H 164"W x 270"L x 150"H 164"W x 270"L x 150"H
Tires (4) 12.5LX15FI 12.5LX15FI 12.5LX15FI 12.5LX15FI
1/2 Inch Thick Drum Feature Image

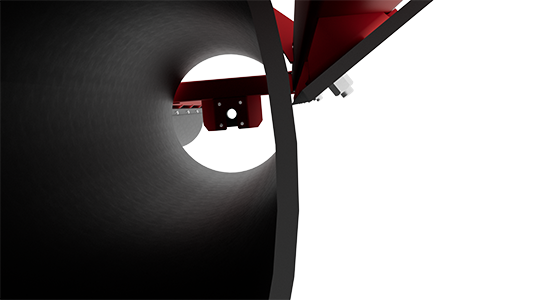

1/2 Inch Thick Drum

34' - 46' Widths Feature Image

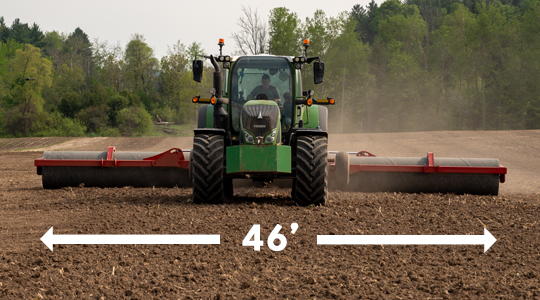

34' - 46' Widths

36 Drum Diameter Feature Image

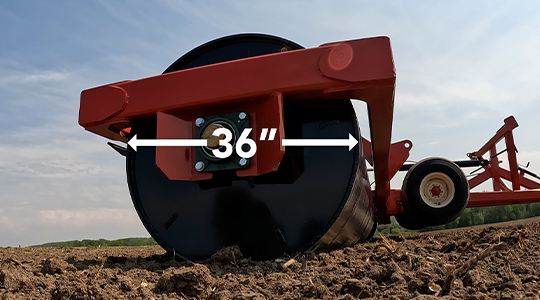

36" Drum Diameter

Forward Fold Design Feature Image

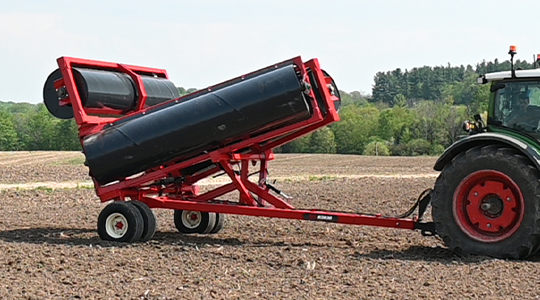

Forward Fold Design

Mud Scraper Feature Image

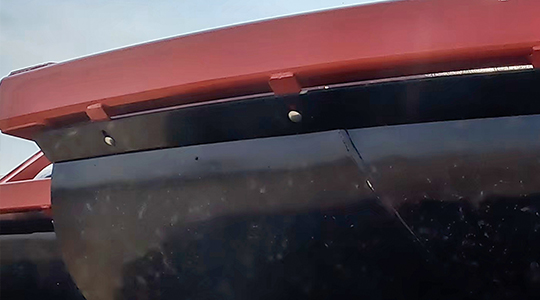

Mud Scraper

Narrow Transport Width Feature Image

Narrow Transport Width

3 Drum Shaft & Bearing Feature Image

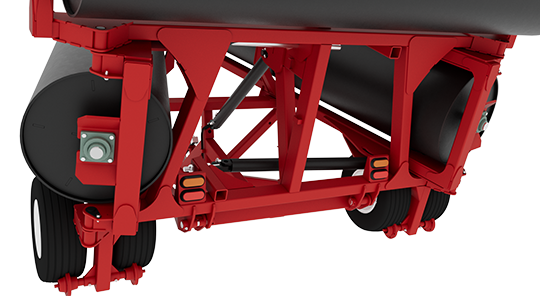

3" Drum Shaft & Bearing
